Carnatic music, Karnatak music, Raga scale harmonization, melakarta, melharmony, theory of Indian classical music
For some time now, both Carnatic and Hindustani musicians have begun to harmonize traditional and classical compositions and implement forms of harmony in improvisation. Nevertheless, the musical results have not been altogether satisfying because important syntactic aspects of both Western and Indian music have been compromised in such endeavors. This paper offers some ways the melodic integrity of Indian music and the harmonic/voice-leading features of Western music can support each other rather than clash.
The paper constructs two-voice frameworks by superimposing an ascending raga scale (ārōhaṇa) on a modal transposition of itself or upon its descending scale (avarōhaṇa). An added proviso is that the vertical chromatic intervals among corresponding notes in each framework must form one of the following chromatic intervals: 0, 3, 4, 7, 8, 9. It is shown that the cardinality of a scale is an important determinant of the possibility of constructing networks. The network format is generalized into interval matrices to cover cases where a raga scale’s arohana and avarohana are highly dissimilar. The paper ends by presenting several methods by which the frameworks can implement the harmonic arrangement of traditional compositions or the composition of new ones.
In sum, just as each raga scale has a number of distinct melodic characteristics (lakshanas), it also has a number of harmonic/voice-leading features that distinguish it from other raga scales.
Robert Morris is Professor of composition and affiliate of the theory department at the Eastman School Of Music, University of Rochester.
Figure 1. The 16 svarasthānas.
Example 1. Two frameworks based on mēla Hēmavati.
Example 2. Two frameworks based on the scale of raga Srīrañjani.
[10] Note that the framework in Example 1 formed by similar motion fulfills VC, while the contrary motion framework does not. [11] The reverse situation is found in Example 2; the notes are those of the six-note scale of the rāga Srīrañjani, a subset of mēla 22, Kharaharapriya. Now the contrary motion framework fulfills VC but similar motion does not. Example 3 shows a five-note scale (from the rāga Nāgasvaravāḷi) that achieves VC in two different ways under contrary motion.Example 3. Two distinct similar motion frameworks based on the scale of raga Nāgasvaravāḷi.
[12] The purpose then of this essay is to provide methods to generate 2-voice frameworks that satisfy VC for as many of the 72 mēlas and their subsets as possible. In addition, we will also develop frameworks for rāgas with vakra melodic motion. [13] A few more technical definitions are needed to advance the next discussions.Figure 2. The i-series of mēla Kīravāṇi.
[15] As shown in Figure 2, the mēla Kīravāṇi has the i-series 2122131.Figure 3. The modal equivalents Māyāmāḷavagauḷa and Simhēndramadhyamam.
C | S | becomes | S | C |
---|---|---|---|---|
Df | R1 | ‘’ | N3 | B |
D | R2 | ‘’ | N2 | Bf |
D# | R3 | ‘’ | N1 | Bff |
Eff | G1 | ‘’ | D3 | A# |
Ef | G2 | ‘’ | D2 | A |
E | G3 | ‘’ | D1 | Af |
F | M1 | ‘’ | P | G |
F# | M2 | ‘’ | M2 | F# |
G | P | ‘’ | M1 | F |
Af | D1 | ‘’ | G3 | E |
A | D2 | ‘’ | G2 | Ef |
A# | D3 | ‘’ | G1 | Eff |
Bff | N1 | ‘’ | R3 | D# |
Bf | N2 | ‘’ | R2 | D |
B | N3 | ‘’ | R1 | Df |
Figure 4. Inversion of svaras.
[18] Three examples of inversion are given in Figure 5.Figure 5. Examples of inversion.
[19] Under inversion, mēla 29 changes into mēla 8 and rāga Mōhanam changes into rāga Hindōḷam. Some mēlas and/or rāgas may not change into scales that are mēlas or rāgas. For instance, Mēchakalyāṇi mēla 65 does not change into a mēla under inversion; the inversion has two Mas and no Pa. As also shown, the inversion of a scale transforms the numbers in an i-series into their negatives.Example 4. Transformations on mēla 21, Kīravāṇi.
[20] We may combine inversion with retrograde and/or cyclic permutation In Example 4, mēla 21, Kīravāṇi is used to show this. These transformations permit an important invariance: if a scale can generate any of the kinds of frameworks discussed in the rest of this paper, then the inversion, and/or the retrograde and/or the cyclic permutation of that scale will also be able to generate a framework of the same kind.Example 5. SM frameworks with mēla 26, Chārukēśi.
[22] Example 5 slows mēla 26, Chārukēśi with the i-series 2212122; each pair of adjacent intervals sums to 3 or 4. Those are the intervals permitted in the VC. Under shifting by two or six steps, notes two positions in the scale apart will occur as simultaneities in the framework. [23] 17 mēlas have this property. These are called all-third mēlas.[11] [12] [24] Other scales and mēlas can also form frameworks under SM, but in these cases some of the vertical intervals are not members of the VC; these are called incomplete frameworks. In particular, we examine cases where only one of the simultaneous intervals is not from the VC. [25] Example 6 shows an incomplete framework using mēla 46. The outlier interval is 5. The framework projects members of VC providing one omits the Df (R1) in the top voice. There are two other modal-equivalent mēlas that have this property.[13]
Example 6. Incomplete SM network for mēla 46, Sadvidhamārgini.
Example 7. Four incomplete SM frameworks.
[26] The next four incomplete frameworks in Example 7 would have an interval 2 among their verticals. This is avoided in three of the four cases by sustaining a note into the omitted notes place. Thus, the SM framework for these mēlas is complete, even if one of the notes in top voice is omitted. (The last of the examples, using mēla 72, simply omits a note.)Example 8. Maximally incomplete SM framework for mēla 39, Jhālavarāḷi.
[27] A contrast is mēla 39, Jhālavarāḷi, in Example 8 whose framework contains only two members of VC, both interval 4. Thus, it produces a maximally incomplete SM framework. Varāḷi, the well-known chromatic rāga, can be derived from this mēla. [28] Table 1 shows the mēla scales that produce complete (the all-third mēlas) and minimally incomplete SM frameworks. This is 36 mēlas, half of the number of mēla scales, many of them highly chromatic.Table 1. Mēla scales that produce complete and minimally incomplete SM frameworks.
Figure 6. Aligning a six-tone scale with its shifted retrograde to make an upper and lower voice combination.
Example 9. Six-note CM frameworks from 7-tone scales.
[32] The top portion of Example 9 is a specific example of a CM framework derived from mēla 22, an all-third mēla. By contrast, the bottom part of Example 9 shows a CM framework using a mēla, nevertheless, whose i-series shows three thirds of 2 and 5 semitones. [33] But despite the fecundity of six-note scales that can generate CM frameworks, most of them are not traditional rāgas in their own right. In fact, there are only a few 6-tone well-known rāgas whose scales are subsets of a mēla. One of them is displayed in Example 10.Example 10. A CM framework based on a 6-tone raga scale.
Example 11. A seven-tone ascending scale written as a cycle.
Example 12. Two adjacent tones are extracted from a seven-tone scale.
Example 13. Species 1 5-tone scale.
[36] From a seven-tone scale, we may derive five-tone scales by extracting two notes. This can be done in three ways producing three species of 5-tone scales. [37] Species 1: we subtract 2 adjacent tones as illustrated in Example 12. [38] This leaves a gap of three steps in the resulting scale. There are only a few rāgas that use this species of 5-tone scales. One of them is given in Example 13.Example 14. Two tones one step apart are extracted from a seven-tone scale.
[39] Species 2: In Example 14 we select 2 tones that are separated by a single tone and extract the former.
[40] There are a quite a number of rāgas whose scales are of this species. Example 15 displays two of them.Example 15. Species 2 5-tone scales.
Example 16. Two tones two steps apart are extracted from a seven-tone scale.
Example 17. Species 3 5-tone scales.
[41] Species 3: We extract 2 tones that are separated by two tones. See Example 16.[14] [42] There are quite a few rāgas that are included in this species. For instance: Mōhanam and Śuddha dhanyāsi are presented in Example 17. [43] Double CM frameworks are available with some 5-tone scales of species two. On the top of Example 18, using the scale of rāga Hamsadhvani, we produce a CM framework that satisfies VC. In addition, using a different retrograde shift, we also produce a second CM framework, as on the bottom of Example 18.Example 18. CM frameworks from species 2 5-tone scales.
Example 19. Worked examples of the eight cases of extraction on the mēla 21, Kīravāṇi.
Example 20. Incomplete CM frameworks.
[48] Other types of incomplete CM frameworks can be built from the bottom up. For instance, given a 4-tone scale—such as C Ef F Af—that can produce a CM framework, we can add a note so that the resulting 5-tone scale (species 3) cannot generate a complete CM framework. In Example 21, however, we can use the added note as a passing tone in the incomplete network.Example 21. Generating CM incomplete frameworks from the bottom up.
Example 22. Two CM frameworks for the mēla 22, Kharaharapriya, with passing tones based on the embedded 6-note scales C D Ef F G Bf (S R2 G2 M1 P N2) and C D Ef G A Bf (S R2 G2 P D2 N2) and their three-voice combination.
Table 2. The chromatic interval matrix for the rāga Janarañjani.
[52] On the matrix the rāga is written in numbers is given along to top (left to right) and side (top to bottom) of the matrix. The ārōhaṇa is followed by the avarōhaṇa. The body of the matrix gives all the chromatic intervals between the notes of the rāga; but on the slide only the intervals in the VC plus 7 are given, all other intervals are omitted. The matrix is divided into four quadrants; the upper left quadrant gives the intervals between the arohana and itself; the lower right quadrant gives the intervals between the avarōhaṇa and itself; the lower left and upper right gives the intervals between the ārōhaṇa and the avarōhaṇa. By tracing paths to the right and/or down onExample 23a. Frameworks for rāga Janarañjani.
the matrix—moving like a King in chess—one can determine complete or incomplete frameworks for the rāga from which it is derived, in this case Janarañjani.[15] Example 23a shows some frameworks for this rāga.
[53] The next examples give the matrices for rāgas Kadanakuthūhalam and Rītigauḷa, each followed by some frameworks. Note in a few cases, the perfect fourth, the chromatic interval of 5 steps is permitted since it is consonant in Indian music, if not in the West. [54] Table 3 shows the chromatic interval matrix for Kadanakuthūhalam.Table 3. The chromatic interval matrix for Kadanakuthūhalam.

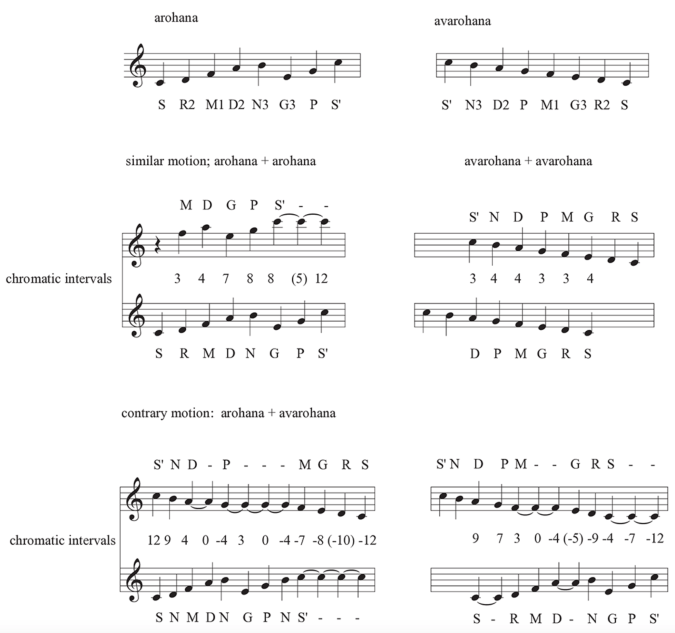

Example 23b. Frameworks for rāga Kadanakuthūhalam.
[55] Table 4 shows the chromatic interval matrix for Rītigauḷa.Table 4. The chromatic interval matrix for Rītigauḷa.
Example 23c. Frameworks for rāga Rītigauḷa.
Example 24. Composing with frameworks.
[57] For instance, in Example 24 consider mēla 23, Gaurimanōhari. This is an all-third scale so it has a SM framework and its various six-tone subsets provide CM frameworks. Three frameworks are presented in Example 24. [58] Now, look at Example 25. If a melody in this rāga presents the following phrase (D Ef G F A C or R G P M D S’), then the frameworks in Example 24 offers three different accompanying 2-voice counterpoints. The bottom voices of each framework are permuted in the same way the top voice is permutated into the melody. Segments selected from frameworks can be mixed in various ways, as demonstrated at the bottom of the example.Example 25. Accompanying a phrase with the three Gaurimanōhari frameworks.
[59] Thus, the frameworks themselves produce a number of different counterpoints to the same melody, and when mixed, the result may seem to have little connection to any of the frameworks. [60] Now we will construct counterpoints for Bahudāri, a 6-tone janya rāga of the 22nd mēla, Harikhāmbōji. See Example 26. Note that Bahudāri’s descending scale omits a note the ārōhaṇa, A (D2). This presents some complications in constructing frameworks for the rāga. Consequently, both the SM and CM frameworks are incomplete. Moreover, in the incomplete SM framework there are adjustments involving passing tones of Bf (N2) in the ascent and F (M1) in the descent. The CM framework is derived two ways: by a 6-tone scale derived from mēla 22 by extracting the D (R2) and by adding a tone to the subset of the rāga scale (C E G Bf or S G2 P D2); the ascending note A (or Dha) is passing. A counterpoint by mixing the CM and SM frameworks is shown as well.Example 26. Frameworks for rāga Bahudāri.
[61] Since we are dealing with a rāga, I will present a few of the most salient sañcāra phrases that identify Bahudāri versus other rāgas derived from mēla 22. These are given in Example 27, and a few are harmonized in Example 28. The trick is to make sure the added voice generally follows the successions in the sañcāra; otherwise the added voice will seem only remotely derived from Bahudāri, if at all.Example 27. Sañcāra for rāga Bahudāri (after Bhagyalekshmy, 2006, 98).
Example 28. Counterpoints for some of the sañcāra of rāga Bahudāri based on mixtures of SM and CM frameworks.
[62] Example 29 displays a portion of a melharmonic arrangement based on the popular composition, “Vātāpi gaṇapatim bhajēham” by Muthuswami Dikshitar in rāga Hamsadhvani. Since this five-tone rāga permits two distinct CM frameworks (as already illustrated in the Example 18), the example harmonizes the last section of the caraṇam in three parts, two playing the melody of the composition in contrary motion.Example 29. Three-voice harmonization of a caraṇam from “Vātāpi gaṇapatim bhajēham” by Muthuswami Dikshitar.
Bhagyalekshmy, S. 1990. Ragas in Carnatic Music. Madras: CBC Publications.
Morris, Robert, and Chitravina N. Ravikiran. 2006. “Ravikiran’s Concept of Melharmony: An Inquiry into Harmony in South Indian Rāgas,” Music Theory Spectrum, 28(2): 255–76.
[1]. This article was previously published in The Journal of the Music Academy, Madras Vol. 89 (2018); it is reprinted here with the kind permission of the Music Academy.
[2]. Various frameworks can support various and sundry chord grammars, each associated with different rāgas. But this is outside the scope of this study.
[3]. The Indian term for “note” is svarasthāna.
[4]. Indian music uses the term janya to indicate that a scale is a subset of a mēla. The terms sampūrna, ṣāḍava, auḍava and svarāntara identify the cardinality of the scale—7, 6, 5, 4 tones, respectively. Rāga scales may be different in ascent from the descent: for instance, 5 tones up and seven tones down (called audava – sampūrna), the ascending and descending scale may not be linear by employing zig-zag contours designated as vakra. Also, the mēla from which the ascending scale is derived is sometimes different from the mēla of the descent.
[5]. Dhrupad musicians such as the Dagar and Gundecha Brothers improvise such simple harmonizations in the later stages of alap. (Ālāp is the free rhythmic, opening section of a typical Hindustani classical performance.)
[6]. These intervals will often be thirds and sixths, but diminished 7ths and 4ths, augmented 5ths and 2nds, are also permitted.
[7]. By omitting 5 and 7, the voices in the framework may cross without complication.
[8]. To be clear, the tuning of intervals in Indian music are based on frequency ratios, and 12-equal tones per octave only approximates such ratios. Moreover, as in western music, there are many candidates for 12-unequal-tones per octave tunings, which are based on frequency ratios. Thus, the use of chromatic intervals is an approximation of the actual intervals used in the performance of Indian music. We will only assume that the intervals used in the music are acoustically pure and “pleasant to the ear” to both the Indian and western musician.
[9]. The VC might include perfect fourths, minor sevenths, for instance. Different scales from the ones we discuss in this study will satisfy other definitions of VC. Of course, the VC can be defined differently to connect a rāga with various genres of western music, such as jazz, or post-tonal music.
[10]. Not all the modal equivalents of a mēla are also mēlas. This is because the fifth step (Pa) of a mēla music be a perfect fifth (seven chromatic intervals from the tonic (Sa)).
[11]. These scales could also be called all-sixth mēlas.
[12]. Another property: the tertian triads of an all-third mēla are of only the four Western tonal types: major, minor, diminished, and augmented.
[13]. As mentioned above, the series of thirds (separated by one note) in a scale can be read off the i-series by summing successive pairs in the series. So mēla 46 has the i-series 1231212; summing the pairs in the series results in 3543333.
[14]. There are no other species since, for instance, extracting 2 notes that are separated by three tones, is the same as extracting two tones two tones apart (as in species 3).
[15]. This use of matrices is described in “Ravikiran’s Concept…” cited above.
[16]. That is, without repeated or passing tones. The 55 other mēlas can be ranked according to the degree that they incompletely fulfill VC under SM. For instance, six of seven vertical intervals fulfill VC.
[17]. The exact number of 6-tone scales is 249, determined by a computer-assisted search. There are 315 5-tone subsets of the mēlas that can produce CM frameworks.
